Lab Series Thermal Straps

Lab Series are the most economical foil-type thermal straps available. Terminal geometry options are limited in the Lab Series because they are made using pre-fabricated components. They are made from the same top quality materials used in our other thermal straps. Just choose a shape and provide dimensions. Lab Series straps come with block terminals. Screw holes can be requested in any pattern.

Do you need help selecting or designing the best thermal control solution for your unique application? Contact us.
General guidance is offered at no charge. Should you need it, Thermotive offers thermal analysis, design, and testing services.

Series



LAB Series (LAB)



STANDARD Series (STA)

Model #

LAB-725

LAB-1225

LAB-1100

STA-500

STA-725

STA-1000

STA-1225

Foil width

0.725 in 18.4 mm

1.225 in 31.1 mm

1.100 in 28.0 mm

0.500 in 12.7 mm

0.725 in 18.4 mm

1.000 in 25.4 mm

1.225 in 31.1 mm

Foil alloy

AL-1100 or CU-101 / 110

AL-1100 or CU-101 / 110

Terminal alloy

AL-6063

AL-6063

CU-110

AL-6061 / 1100 or CU-101 / 110

Strap thickness
(0.001 in foils)

200 foils

425 foils

205 foils

Made to specification

Length of
heat path
*

x (number of milimeters)

Est. conductance AL foils at RT

17/x W/K

61/x W/K

26/x W/K

Est. conductance CU foils at RT

31/x W/K

111/x W/K

48/x W/K

Est. conductance CU rope at RT

25/x W/K

89/x W/K

38/x W/K

Shape

L, S, U, M (modified)

L, S, U, M (modified)

Terminals

LAB-725 Block terminal (BT)
LAB-1100 Block terminal (BT)
LAB-1225 Block terminal (BT)
Block with holes (BH)

Block terminal (BT)
Block with holes (BH)
Parallel flange (PF)
Orthogonal flange (OF)

Hole placement

Made to specification

Made to specification

* The heat path length is measured in milimeters -- mid-terminal to mid-terminal. If the heat path measures 100 mm, then x=100.

How to Order:

First review the thermal strap shape drawings shown below. If the thermal link desired is similar to one of those shown, then:

    1. Select the model required using the table above to select the foil width.
      Example: LAB-725
    2. Click on and review the L, S, and U-shape drawings (PDF). Select the desired strap shape by adding the letter to the part number.
      Example: LAB-725-S
    3. Add the thickness, terminal types, and characteristic dimensions (A, B, C) highlighted in the drawing to the finished part number.
      Example: LAB-725-S-200-BT-BH-1.250-2.450
    4. Contact us with your desired part numbers. If applicable, also include a simple sketch with hole sizes and placement. Our technical staff will contact you promptly with a quote, and lead time.

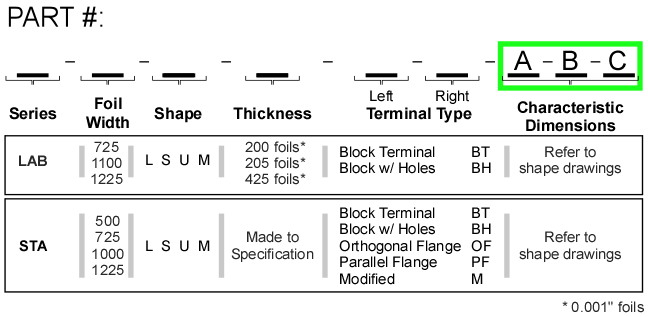

      The part number will follow this format:

For modified versions of the Lab Series designs you can either send us a dimensioned hand sketch or modify one of the shape drawings (PDF). Just send us a picture or scan with the modifications or your unique shape. Simple variations will be priced as standard Lab Series thermal links.



Thermal Strap Shape Drawings (L, S, U):

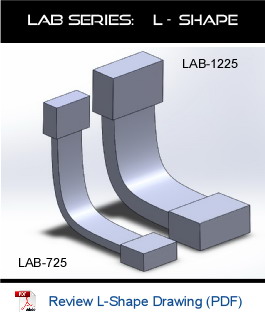

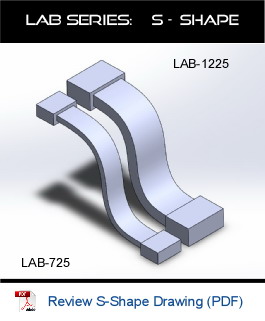

L Aluminum Thermal Strap S Aluminum Thermal Strap U Aluminum Thermal Strap

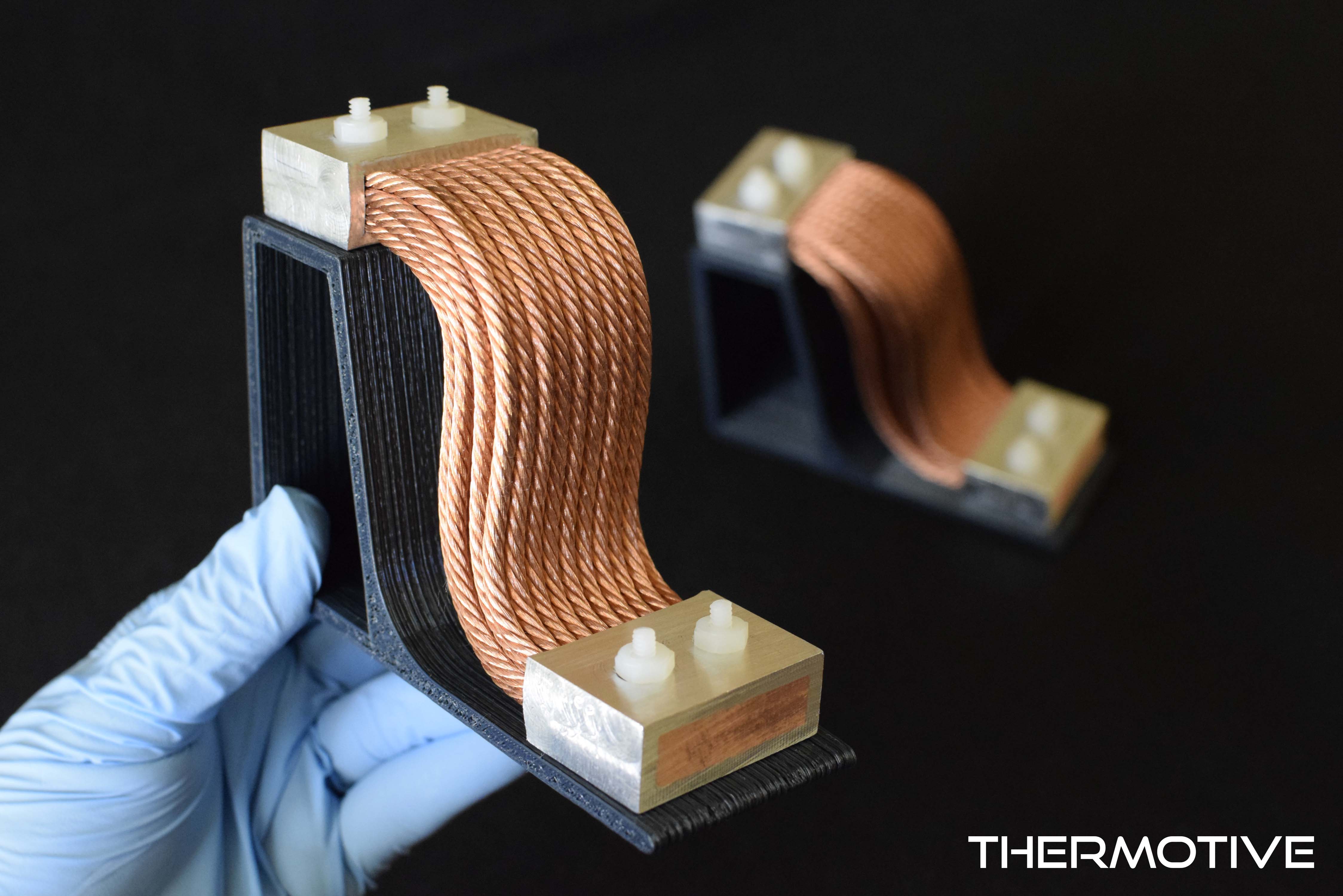

Lab Series Strap Pictures:

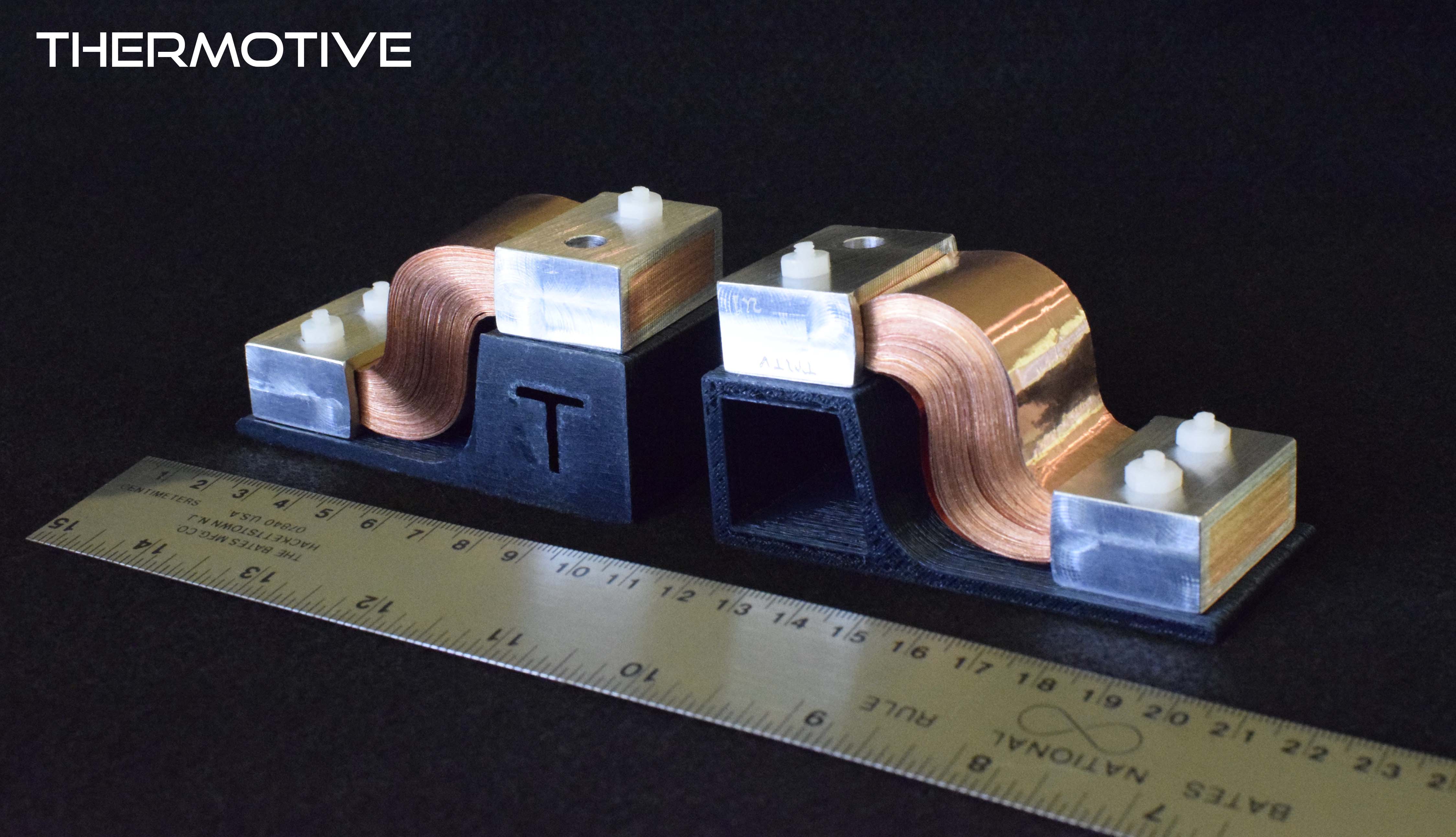

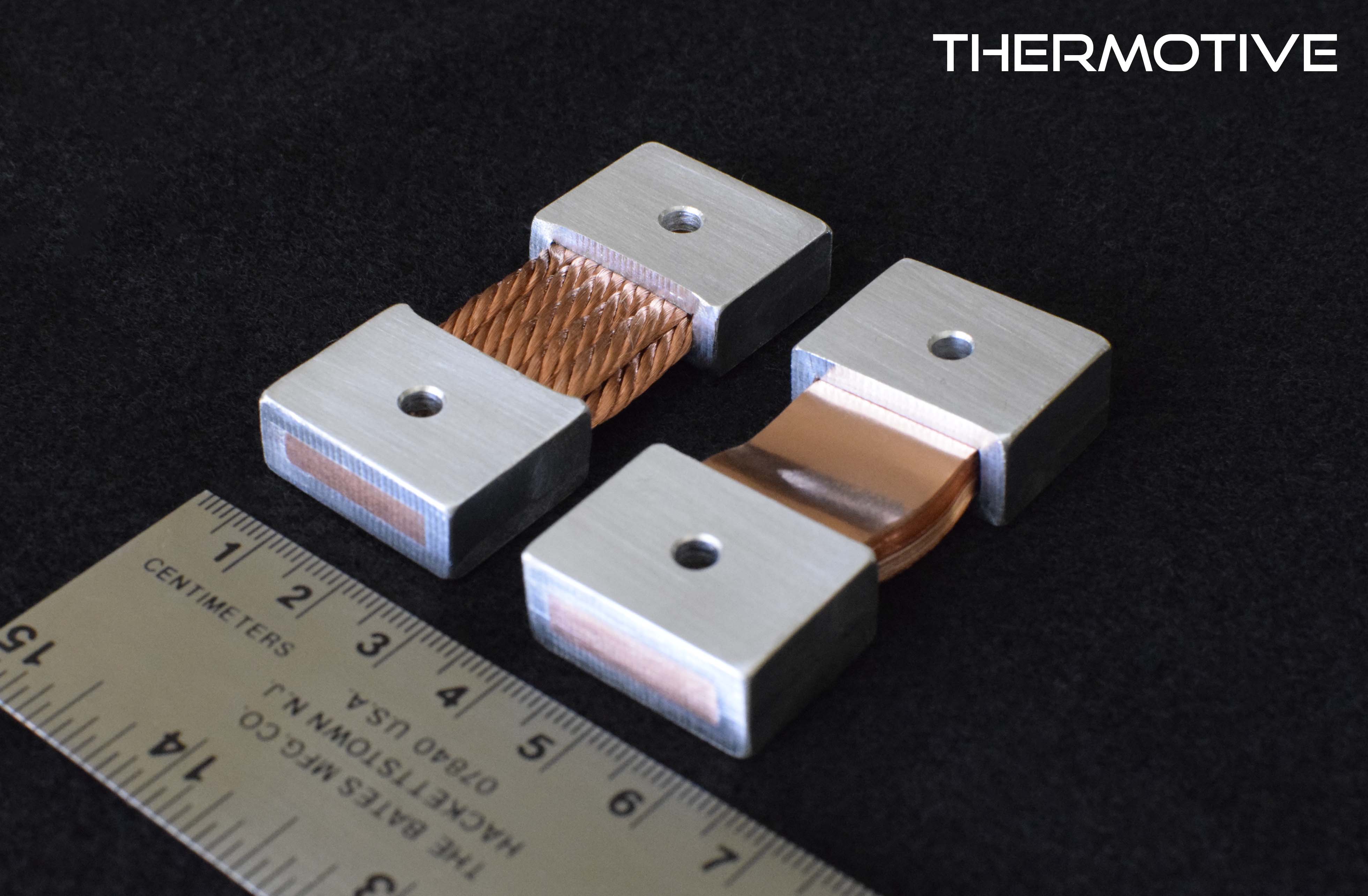

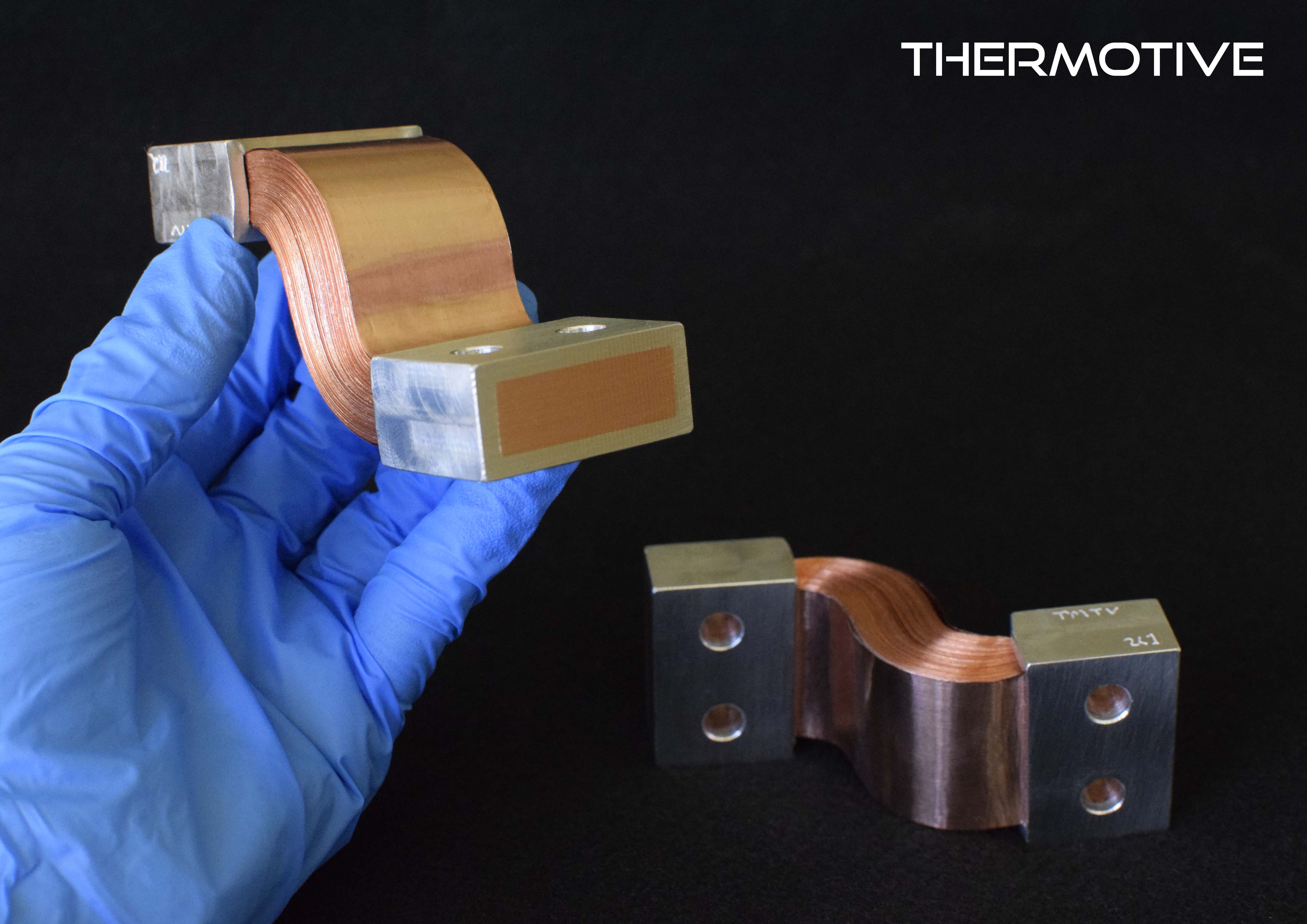

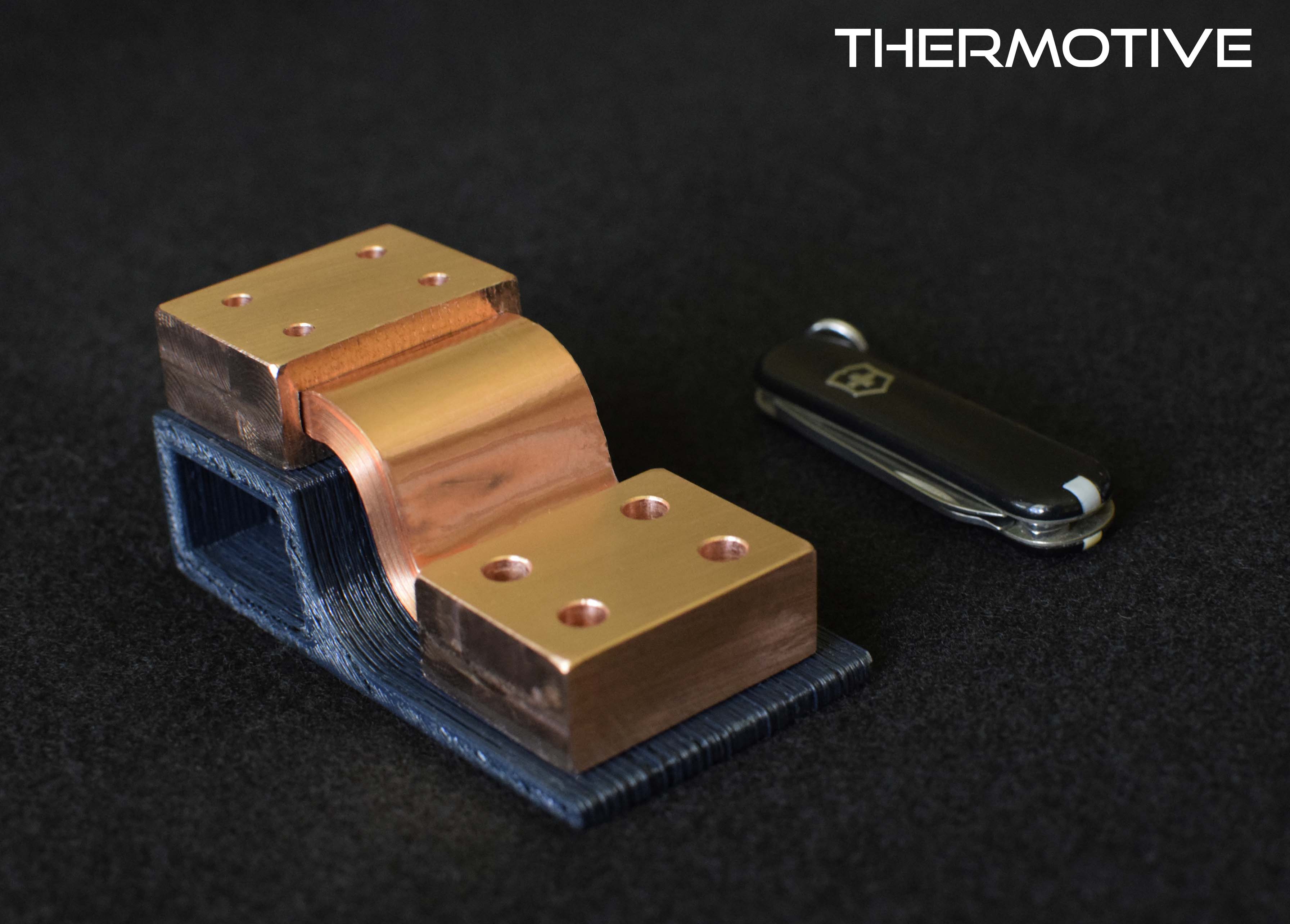

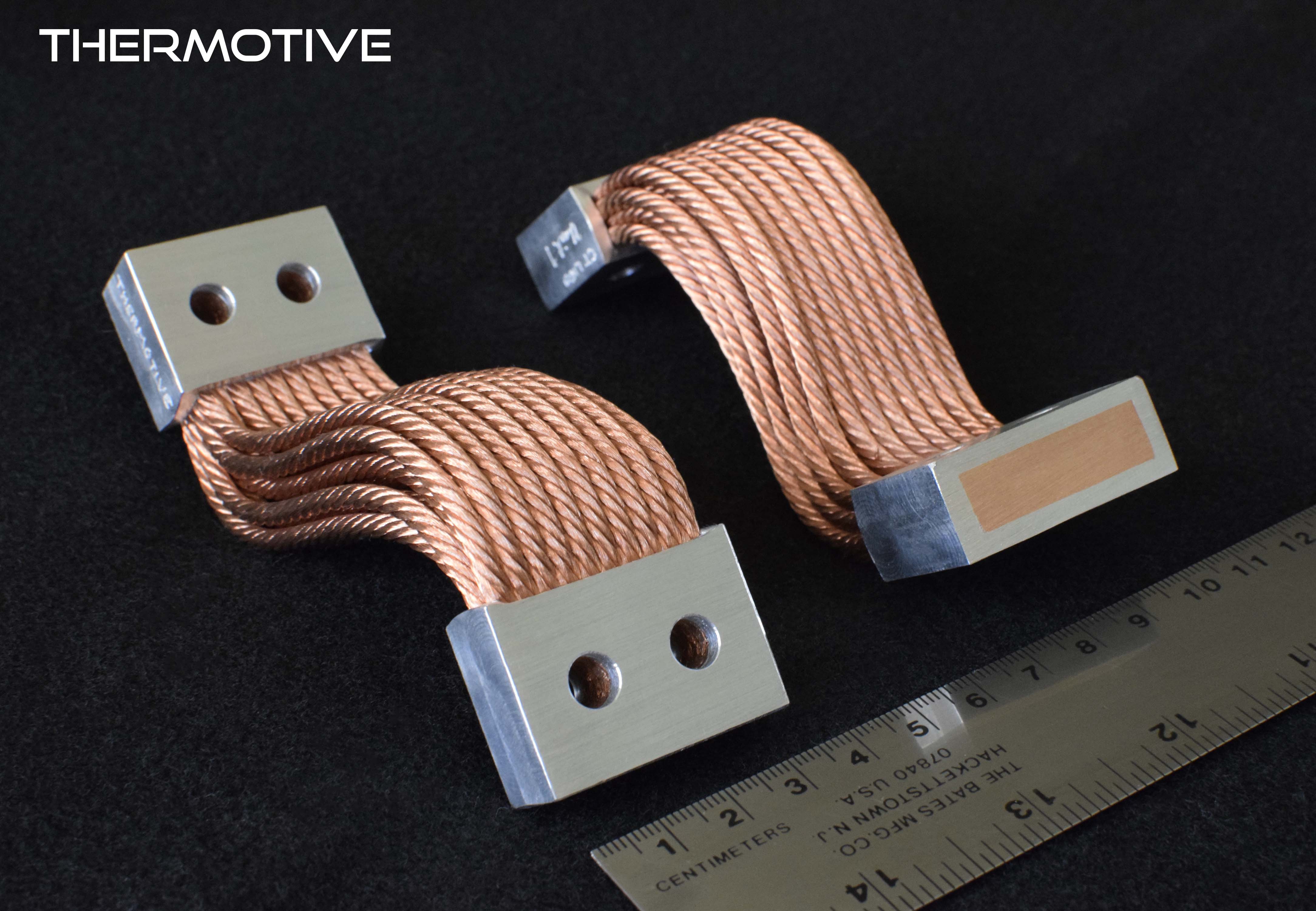

Lab Series Thermal Strap Lab Series Thermal Strap Lab Series Thermal Strap
